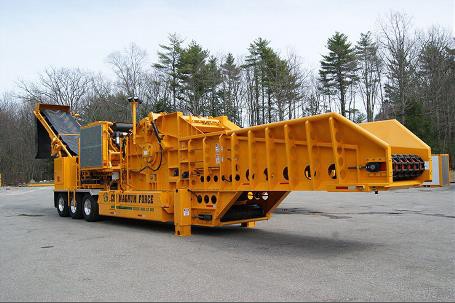

Continental Biomass Industries, Inc. - Magnum Force 8400 Portable Horizontal Grinders

The Magnum Force Series 8400 Horizontal Hog is the undisputed world champion of extreme duty portable Hogs. Featuring an exceptionally strong yet light chassis, and the option of three application-specific rotor packages, the 8400 delivers both the rugged durability needed for processing metal and aggregate contaminated waste, and unrivaled portability in over-the-road transport. The 8400 grinds full-length trees, stumps and brush, yard waste, contaminated C&D, telephone poles and railroad ties at an unbeatable throughput rate of up to 200 tons/hour. As with all CBI products, every feature and component is designed for the longest wear life, easiest maintenance, and lowest cost of operation available.

Specs

Key Specifications
Weight 94,000–108,000 pounds
Feed Conveyor Length 16' standard; 20' optional
Engine Power CAT C-27, 1050 hp; PT Tech HPTO 15 clutch
Throughput up to 200 tons/hour
Feed Conveyor Width 60"
Discharge Conveyor Width 60"
Discharge Conveyor Length 50'
Discharge Height 17'
