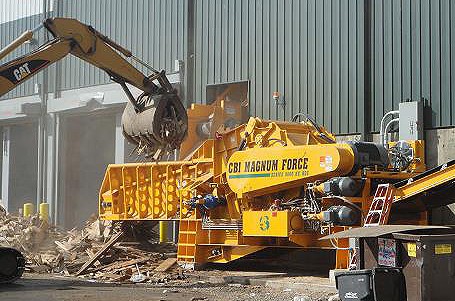

Continental Biomass Industries, Inc. - Magnum Force 8600 Stationary Horizontal Grinders

If your need is for the highest possible production grinding trees, stumps brush, yard waste or pallets, then the 8600 is for you. Following in the tradition of CBI’s 4800 series, the Magnum Force 8600 incorporates the extreme ruggedness and versatility of that model and adds newly engineered features never before available in a wood waste grinder. The 8600’s unique clamshell design provides outstanding access for service, and a direct line for lifting and removing screens. Screens are specially designed to slide in easily, and the three screen system allows for product size to can be readily customized to meet end-product requirements. Other features, such as CBI’s IntelliGrind™ operating system and Replace-A-Face™ hammers, make this unit the most technically advanced on the market today. As with all CBI products, every feature and component is designed for the longest wear life, easiest maintenance, and lowest cost of operation possible.

Specs

Key Specifications
Weight 92,000 pounds
Power CAT 3412E, 1030 HP (effective 2006, CAT C32 rated at 1300 HP)
Discharge conveyor 60" x 50' (WxL)
Discharge height 17’ 10”
Feed Conveyor (high troughing) 60" x 16' (WxL)
