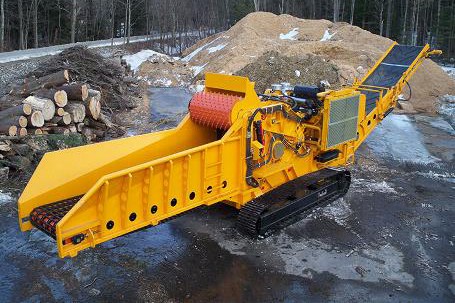

Continental Biomass Industries, Inc. - Magnum Force 8800 Portable Horizontal Grinders

Bigger, stronger, smarter, more fuel efficient and productive than anything previously made – the 8800 grinder is built specifically for maximized throughput when grinding trees, stumps, brush, yard waste or pallets. Clamshell opening, 1050 – 1200 HP diesel or electric powered. Complete state-of-the-art metal detection and release system. Track-mounted, wheel-mounted and stationary versions available.

The rugged hogbox is reinforced in every direction for maximum strength. It’s 100% covered with bolt-in wear liners, has extra-large flange-style bearing housings for maximum rotor support and a clamshell design that provides for outstanding access for the service of rotor and screens. The industry’s strongest rotor is a high strength forging with 24 hammers arranged in our patented offset-helix layout for maximum efficiency. AR 450 anvil and screens that come in all sizes to meet a variety of needs from primary grind to a very fine uniform end product.

Specs

Key Specifications
Weight 107,660 pounds (depending on options)
Throughput up to 200 tons/hour
Power CAT C32 rated at 1200 HP
Discharge Conveyor Length 45’
Discharge Conveyor Width 60”
Discharge height 15’ 8”
