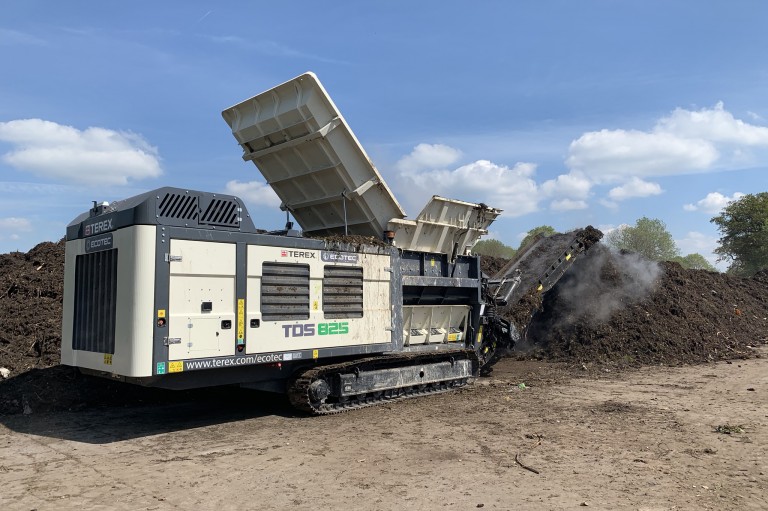

Terex Ecotec - TDS 825 Shredders

Customisable shredding programs allow operators to configure the machine to their specific requirements, maximising production.  The hydrostatic drive offers protection against contamination and allows for bi-directional shredding while independent gear boxes enable each shaft to run separately helping to reduce wrappage and improve the shredding of material.  This double shaft shredder has 2.5m long shafts made from solid steel, with a fully welded tooth configuration giving an extremely high production rate with excellent size reduction.  Located in the centre of the chamber, directly below the shredding shafts is the replaceable breaker bar.  A number of options are available depending on the level of reduction required, these are easily replaceable due to the side door chamber access.

Specs

Key Specifications
Shaft Length 8'2" / 2,500mm
Engine Scania DC16 770HP Stage II, IV & V / Scania DC16 566kW Stage II, IV & V
Weight 102,514lbs / 46,500kg
