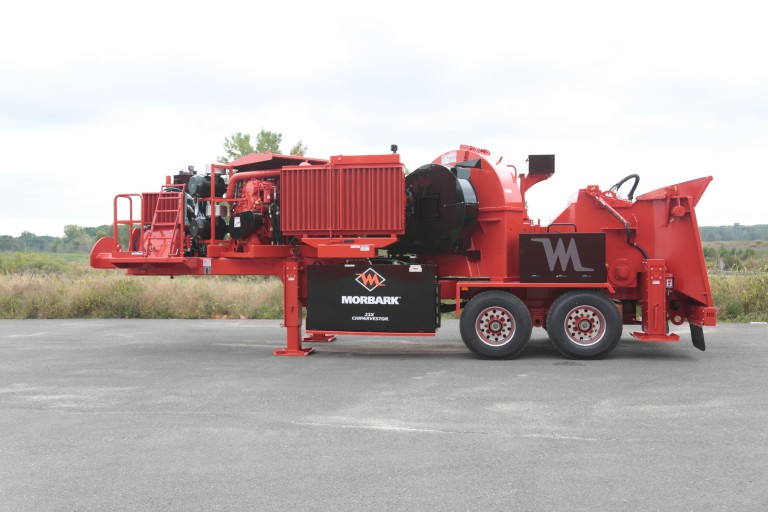

Morbark, Inc. - 23X Chiparvestor Chippers

Morbark 23X Chiparvestor® whole tree chippers are built to last. The improved chipper hood design that allows for better access to the disc during inspections and maintenance, while the 23″ (58.42 cm) chipping diameter tackles some of the larger trees. Each chipper disc is put through ultrasonic testing, making it the best chipper disc in the industry. Like the previous Model 23 Chiparvestors, the 23X uses a 75″ (190.5 cm) diameter x 5″ (12.7 cm) thick chipper disc to chip large volumes of wood, while the built-in dirt separator with deflector keeps the end product clean. Key improvements of the 23X over the previous models include increased ground clearance with four super single flotation tires for mobilization on uneven logging jobs; 8'6″ (2.59 m) width for legal transport worldwide; a simplified feed system that includes a two-wheel hydraulic feed system consisting of a 35″ x 56″ (88.9 cm x 142.2 cm) top feed wheel and 13″ x 56″ (33.2 cm x 142.2 cm) bottom feed wheel; a large work platform for easier and safer disc inspections and maintenance; and much more!

Specs

Key Specifications
Gross weight (approx.) 58,040 lb (26,326 kg)
Horsepower 800 HP (596 kW)
Engine CAT
Tandem axle trailer 44,000 lb (19,958 kg) suspension
Chipping capacity 23″(58.42 cm)
