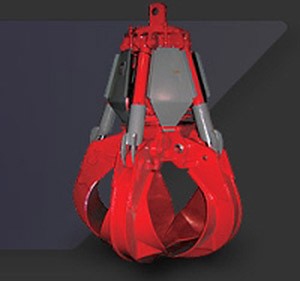

RV Series Grapple
Gensco
The RV Grapple is designed to work with cranes that range in weight from 22 to 50 tons. The grapples have 4 or 5 fingers with four different finger styles, depending on the application of the grapple. The RV has a 1/2 to 2.75 cubic yard capacity. The weight of the RV ranges between 3200 to 7000 lbs., depending on the finger type. Optional internal hydrauilc rotators available.
Specs
| Model: RV400P (4 or 5 tine/finger) | .5 cu. yds, 1875/1985 lbs. |
| Model: RV500P (4 or 5 tine/finger) | .6 cu. yds, 2165/2295 lbs |
| Model: RV600P (4 or 5 tine/finger) | .75 cu. yds, 2870/3285 lbs |
| Model: RV800P (4 or 5 tine/finger) | 1 cu. yds, 3090/3530 lbs |
| Model: RV1000P (4 or 5 tine/finger) | 1.25 cu. yds, 5075/5735 lbs |
| Model: RV1250P (4 or 5 tine/finger) | 1.6 cu. yds, 5295/6175 lbs |
| Model: RV1500P (4 or 5 tine/finger) | 2 cu. yds, 5845/6615 lbs |
